homeoneusa We spent many hours on research to finding bosch 75 amp relay, reading product features, product specifications for this guide. For those of you who wish to the best bosch 75 amp relay, you should not miss this article. bosch 75 amp relay coming in a variety of types but also different price range. The following is the top 6 bosch 75 amp relay by our suggestions
810 reviews analysed
Rank
Product Name
Rank
Product Name
– Pins, 12 V, 75 A, Bosch 0332002168 Normal Open Power Relays
Last update was on: Tuesday, June 9, 2020
- – Pins, 12 Volts, 75 Amp Resistor
- Normal Open Power Relays
- Long service life- made possible through meticulous processing and the use of high-quality materials allowing up to 250,000 switching cycles
- Designed to wistand tempeeratures ranging from -40 F to up to 212 F
- Black color with a bracket
Product Description
Bosch relays are consistently reliable and perform switching operations in both automobiles and off-highway applications. The range includes 12- and 24-volt relays in a variety of sizes.
Set Contains:
– Pins, 12 V, 75 A, black Normal Open Power Relays with a bracket
Bosch Automotive 0332002156 Relay
Last update was on: Tuesday, June 9, 2020
- – Pins, 12 Volts, 75 Amp Diode
- Normal Open Power Relays
- Long service life- made possible through meticulous processing and the use of high-quality materials allowing up to 250,000 switching cycles
- Designed to wistand tempeeratures ranging from -40 F to up to 212 F
- Black color with a bracket
5 PACK 40/30 AMP 12 V DC Waterproof Relay and Harness – Heavy Duty 12 AWG Tinned Copper Wires, 5-PIN SPDT Bosch Style Automotive Relay
Last update was on: Tuesday, June 9, 2020
- 12 AWG tinned copper wires for Pin 30, Pin 87, Pin 87a. Length: 5.1 in
- 16 AWG tinned copper wires for Pin 85, Pin 86. Length: 5.1 in
- 12 V DC waterproof relay (max 14 V). 40 A / 30 A High switching capability
- Excellent waterproof performance, high quality in any weather conditions
- Nominal voltage: 12 V DC
- Coil power: 1.8 W
- Coil resistance: 80
- Max operate voltage: 6~8 V DC
- Mix release voltage: 0.6~3.6 V DC
- Max applicable voltage: 15.6 V DC
ONLINE LED STORE 6 Pack – 12V DC 40/30 Amp 5-Pin SPDT Automotive Relay Harness Set (Bosch Style with Interlocking Harnesses)
Last update was on: Tuesday, June 9, 2020
- User Manual available for download under Product Information Details
- Bosch style 12VDC (14V Max) 5-Pin SPDT (Single Pole Double Throw) Relay with 40A/30A High Switching Capability.
- Interlocking design relay socket harness base for easy cable management & organization.
- Heavy duty 14AWG wires for the main contact and pre-wired with 6″ pigtail leads.
- Wire Specifications: Black – Ground (85), Red – VDC (30), White – Trigger (86), Yellow – Output N/C (87a), and Blue – Output N/O (87).
ONLINE LED STORE 10 Pack – Bosch Style 12V DC 5-PIN SPDT Interlocking Relay Socket Harness Base (with Wires)
Last update was on: Tuesday, June 9, 2020
- User Manual available for download under Product Information Details
- Interlocking design for easy cable management & organization.
- Fits 5-Pin Bosch style SPDT relays.
- Heavy duty 14AWG wires for the main contact and pre-wired with 6″ pigtail leads.
- Wire Specifications: Black – Ground (85), Red – VDC (30), White – Trigger (86), Yellow – Output N/C (87a), and Blue – Output N/O (87).
- 10pc Included

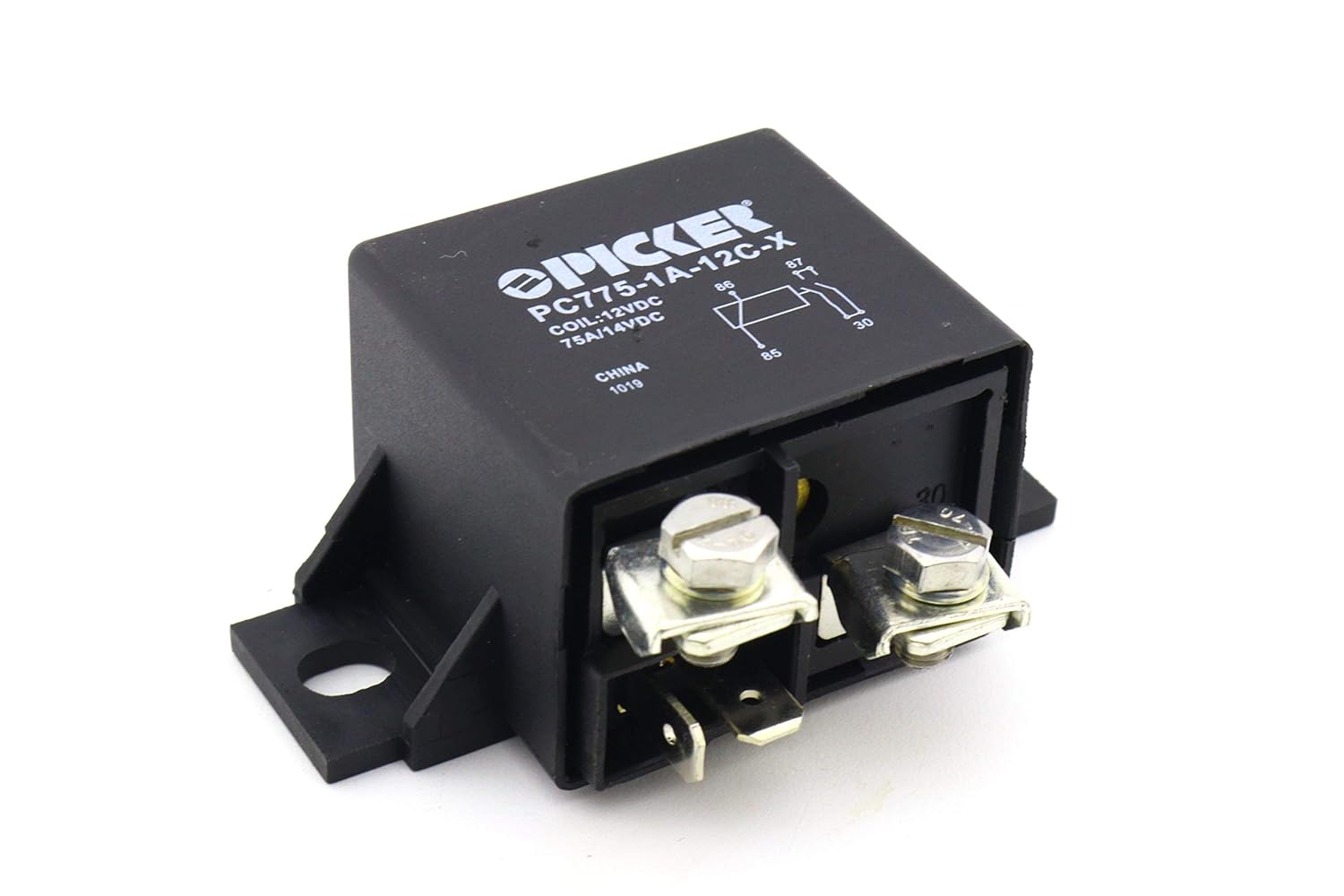

PC775-1A-12C-X | 75 Amp 12 VDC Automotive High Current Power Relay, SPST-NO 12VDC Coil with Bifurcated Contacts | Cross TE V23232-D0001-X001 & Bosch 332002168
Last update was on: Tuesday, June 9, 2020
- Picker Components | “The Relay Experts, Building Better Relays”
- 75 Amp at 14 VDC Continuous Carry Current at 25°C, -40°C to 125°C Operating Temperature
- Coil: 12 VDC / 2.9 Watts
- For more Technical Specifications and Pin Out Diagrams see datasheet: http://www.pickercomponents.com/pdf/Relays/PC775.pdf
- Cross Reference: TE V23232-D0010-X001 & Bosch 332002168
Single Pole/Single Throw-NO 12VDC Coil 75 Amp Screw Clamp Automotive Relay. Please reference https://pickercomponents.com/pdf/Relays/PC775.pdf for additional information.
Conclusion
By our suggestions above, we hope that you can found Bosch 75 Amp Relay for you.Please don’t forget to share your experience by comment in this post. Thank you!
