Nowadays, there are so many products of low voltage induction heating board in the market and you are wondering to choose a best one. You have searched for low voltage induction heating board in many merchants, compared about products prices & reviews before deciding to buy them.
You are in RIGHT PLACE.
Here are some of best sellings low voltage induction heating board which we would like to recommend with high customer review ratings to guide you on quality & popularity of each items.

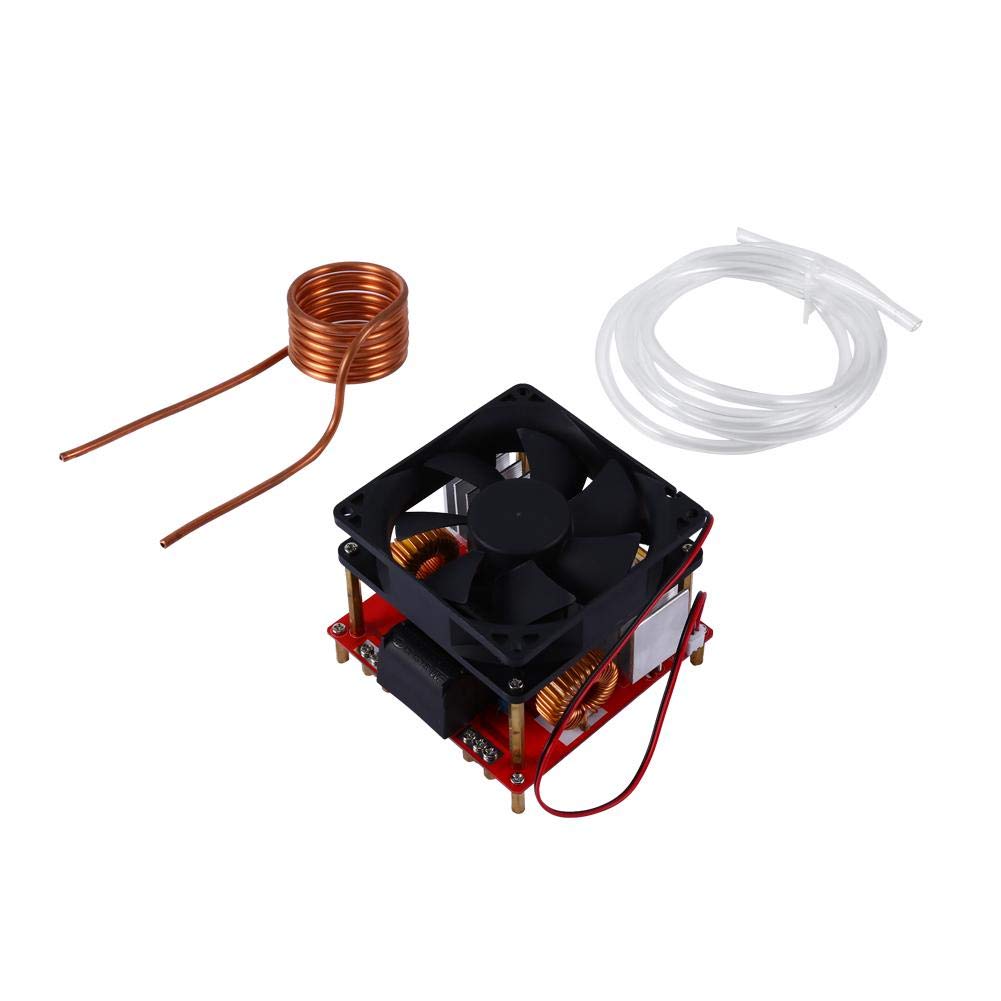

1000W 20A ZVS Low Voltage Induction Heating Board Module Tesla with Coil 12V-48V Flyback Driver Heater DIY
- 12-48V low voltage power supply. Maximum current 20A, Maximum power 1000W.The bigger voltage, the higher power.
- Tested 53V power supply when working properly. It can be used for DIY players to make small parts quenching, annealing and other heat treatment, heating fast, very convenient
- This circuit can do induction heating, or replace copper tube with high frequency transformer, it will be a powerful inverter
- The higher voltage, the higher current when heating the same things, the effect is better, but at the same time heating is also higher, therefore the choice of input voltage is based on your need.24V or 36V power supply is enough
- Note: buyer need to bring their own power and cooling unit
Features:
24V input with no load current of 3A , 48V input with no load current of 6A
buyer need self-provided power and water cooling device
This circuit can do induction heating, or replace copper tube with high frequency transformer, it will be a powerful inverter
Note:
The kit contains a full set of driving circuit elements and brass
Buyers need to bring their own power and cooling unit.
The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.
So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.
The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit.
Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload
Package Includes:
1 x 20A 1000W Flyback driver inductive heater Zero Voltage Switching Tesla
1 x Coil
1800W ZVS Induction Heating Board Module Low Voltage High Frequency 12-48V Flyback Driver Heater with Tesla Coil and Cooling Fan
- The induction heating boards maximum power is 1800W, adopted super PCB layout design and super heat sink, heat dissipation good, since with a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc
- The induction heating circuit adopt 12-48V DC power supply, maximum current is 40A, the power uo to 1800W. It can work continuously under the condition of good heat dissipation. moderate power which make it can be used to quenching, annealing and other heat treatment. also for melted with graphite crucible kim/silver/ copper/aluminum and so on, heating is evenly and fast
- it is recommended that not exceed 48V 35A to prevent accidents and damage,Although withstand more than 40A current.Induction heating is recommended to use 36V 20A power supply, 12V power supply is too small almost without response, and 12V power might lead to the voltage decreases, which is very dangerous.More than 24V/20A power supply, the greater the voltage/current, the greater the heating power, heating faster.
- please check the power output meets the requirements if the MOS tube fever,and be sure to do a good job of cooling.Do not empty the board, otherwise it will create a very high noise, then MOS tube will burn out
- please do not to heat too large metal, otherwise it may be overloaded, please add a 35A fuse or ammeter and air switch for better use (not included).
Specification:
Product size:Approx.180x90x80mm (please allowed 1-3mm error)
Heater ring inner:70mm (Recommended crucible+quartz suit,maximum support of 58mm crucible)
Power supply:
New style :AC 100-220V Adapter
Old style: Main board Input voltage: 12V-48V recommend: 36V above
Power requirements: less than 12V≥10A , 15V above≥15A
NOTE:New style and Old style shipped by randomly!!!
It doesn’t affect the performance of product.!!!
Maximum power: 1800W
Maximum current: 40A
Package Content:
1 x PCB board
1 x 48V copper tube
1.The power of heating is very large, except that the plate and components are hot, and the heat of copper tube is very high. you can buy a small water pump and 2 meters of rubber hose(inner diameter is 4mm) for build a water cooling system
Please pay attention to using switch power supply, because output voltage is slowly rising, and if the voltage rise to 10V before connected induction heating circuit that will be lead to circuit can’t afford to vibrate caused by lacking voltage,so that the two MOS tube conduction and components will burned
comes with heating circle diameter-60 mm/design voltage-36V,if you use more than 40V Devices shall be used ≥70 mm diameter heating ring, DC 12V water pump use, please use separate power supply voltage regulator module to avoid fan and water pump are burn out
The minimum input is 12V, but it doesn’t mean all 12V power supply available,The module has specific requirements on voltage and current , 12V require current must than 10A ,output power will greatly reduced if the power is too low ,which will lead to two MOS conduction at the same time & burn MOS tube when lower than 12V
500W ZVS Low Voltage Induction Heating Board Module Tesla Coil 24V-36V Flyback Driver Heater
- Can make any metal objects quickly heated to the desired temperature, including its melting point
- Heat can be generated directly in the metal, instead of by an external heat source via heat conduction
- There need not be any external contact, which can be important where contamination is an issue
- Could melt refractory metals which require very high temperatures
- Comes with a fan and a transparent hose for the purpose of enhancing heat dissipation
Induction heating is the process of heating an electrically conducting object, usually a metal, by electromagnetic induction, through heat generated in the object by eddy currents. An induction heater consists of an electronic oscillator that passes a high-frequency alternating current through the electromagnet. The rapidly alternating magnetic field penetrates the object, generating electric currents inside the conductor called eddy currents and generating heat.
Specifications:
Working Voltage: DC 24-36V
Working Current: More than 15A, less than 30A
Power Tube: Original IRFP260N (50A 200V)
Output Power: 350W–500W
Board Size: 100 x 100 x 81mm / 3.93 x 3.93 x 3.19″
Spiral Copper Pipe Inside Diameter: 40mm / 1.57″
Found with a 36V power supply completely into the new 30 * 30 graphite crucible input current of 25A
Found molten aluminum Power Requirements: 24V 350W – 500W power supply (15A to 20A) melting point: 660 ℃
Notice:
This item don`t provide the power supply, buyer need to find a 24V to 36V DC power supply, (Not less than 350W. More than 15A without losing voltage). If power by storage battery, must add a ampere meter for supervision. Only direct heating a steel material ( the magnet can be adsorbed material). Gold, silver, copper, aluminum can not be directly heated, need to match the graphite crucible melting.
Package Includes:
1 x Induction Heating Board
1 x Vortex Tube
1 x Transparent Hose
Note:
1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
1800W ZVS Induction Heater Induction Heating Board Module Tesla Coil 12-48V Low Voltage DC Power Supply with a Maximum Current of 40A, Flyback Driver Heater
- This Induction Heating Board Module has a maximum power of 1800W, super PCB layout design and super heat sink, superior heat dissipation effect
- 12-48V low voltage DC power supply with a maximum current of 40A. It can work continuously for several hours with good heat dissipation
- Can use graphite crucible to melt gold, silver, copper, aluminum and other metals, heating evenly, fast and very convenient
- With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc
- Flyback Driver Heater is recommended not to exceed 48V 35A to prevent accidents and damage
Specification:
Input Voltage: 12V-48V (Recommendation: above 36V)
Power Requirments: Less than 12V >=10A, More than 15V >=15A
Maximum Power: 1800W
Maximum Current: 40A
Heater Inner Ring: 70mm / 2.8in
Size: 18 * 12 * 9 cm / 7.1 * 4.7 * 3.5in
Weight: Approx. 1052g
Package Included:
1 x PCB Board
1 x Copper Tube
Note:
1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.
2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.
3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.
4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.
5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.
6. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.
7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.
ZVS Induction Heating Board Module1800W 40A Low Voltage Flyback Driver Heater
- This product has a maximum power of 1800W, super PCB layout design and super heat sink, superior heat dissipation effect
- 12-48V low voltage DC power supply with a maximum current of 40A. It can work continuously for several hours with good heat dissipation
- Can use graphite crucible to melt gold, silver, copper, aluminum and other metals, heating evenly, fast and very convenient
- With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc
- It is recommended not to exceed 48V 35A to prevent accidents and damage
Specification:
Input Voltage: 12V-48V (Recommendation: above 36V)
Power Requirments: Less than 12V >=10A, More than 15V >=15A
Maximum Power: 1800W
Maximum Current: 40A
Heater Inner Ring: 70mm / 2.8in
Size: 18 * 12 * 9 cm / 7.1 * 4.7 * 3.5in
Weight: Approx. 1052g
Package Included:
1 x PCB Board
1 x Copper Tube
Note:
1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.
2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.
3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.
4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.
5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.
6. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.
7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.
fosa 1800W Induction Heating Module ZVS Low Voltage 12V-48V Induction Heating Board Flyback Driver Heater DIY High Frequency Induction Heating Machine Module
- This product has a maximum power of 1800W, super PCB layout design and super heat sink, superior heat dissipation effect
- 12-48V low voltage DC power supply with a maximum current of 40A. It can work continuously for several hours with good heat dissipation
- Can use graphite crucible to melt gold, silver, copper, aluminum and other metals, heating evenly, fast and very convenient
- With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc
- It is recommended not to exceed 48V 35A to prevent accidents and damage
Specification:
Input Voltage: 12V-48V (Recommendation: above 36V)
Power Requirments: Less than 12V >=10A, More than 15V >=15A
Maximum Power: 1800W
Maximum Current: 40A
Heater Inner Ring: 70mm / 2.8in
Size: 18 * 12 * 9 cm / 7.1 * 4.7 * 3.5in
Weight: Approx. 1052g
Package Included:
1 x PCB Board
1 x Copper Tube
Note:
1. When using a switching power supply, make sure that the power supply voltage is stable before connecting to the induction heating circuit.
2. Do not heat metal that is too large or it may be overloaded. Please add a 35A fuse or ammeter.
3. Although this driver board can withstand more than 40A, it is recommended not to exceed 48V 35A to prevent accidents and damage.
4. The minimum input voltage of the module is 12V, the voltage of 12V must be greater than 10A to use the power supply.
5. If you find that the MOS tube is hot, first consider whether the power output meets the requirements.
6. Do not clear the circuit board, otherwise it will emit a very high frequency of noise, and then the MOS tube will burn out.
7. It is recommended to use a 36V 20A power supply. Below 12V is very dangerous.
ZVS Driver Module,5V-12V ZVS Low Voltage Induction Heating Power Supply Board+Heating Coil
- ZVS heating power supply module including 1pcs heating coil
- Input voltage- DC 5V-12V
- Max Power-120W (when 12V induction heating)
- Ensure all the components welding right,power line connect in right way,than to set up an electric circuit
- Width of the heated object : as far as possible 1/3~1/2 , maximum inner diameter of the heating coil: not more than 2/3
- PCB size: 55 mmx37 mmx1.6 mm
Specification:
Input voltage: DC 5v-12 v
Maximum power 120w (12 v induction heating). 12 v, push the ignition coil primary 5 + 5 turn, about 30 w.
PCB size: 55 mmx37 mmx1.6 mm
Heating coil, the width of the heated objects as far as possible between the heating coil diameter of 1/3 ~ 1/2, most not more than two-thirds.
Package Included:
1 x ZVS driver board
1 x heating coil
Yosoo 1000W ZVS Low Voltage Induction Heating Board Module Tesla coil 12V-48V Flyback Driver Heater DIY
- This section of induction heating using low-voltage DC power supply 12-48V Maximum current 20A, maximum power 1000W.
- Tested 53V power supply when working properly.
- Because of its moderate power, can be used for small parts DIY players do hardening, annealing and other heat treatment, Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient.
- 24V input with no load current of 3A , 48V input with no load current of 6A
- The higher the voltage, the greater the heating current when the same thing, the effect is better, But at the same time heat is also large, so to eradicate the actual situation to select the input voltage, the general use of the words 24V or 36V power supply is enough.
Note:
1. The kit contains a full set of driving circuit elements and brass
2. Buyers need to bring their own power and cooling unit.
3. The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
4. The use of switching power supply Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.
So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.
5. The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit.
Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload.
This circuit can not only do the induction heating, the copper tube into the high-frequency transformer, is a powerful inverter.
Note:
Make sure to thoroughly cool this while running anywhere near the specified limits (a very high CFM computer fan will help).
You must turn your power supply on first then put the power to the heater or you will burn it up.
Package includes:
1 x ZVS Low Voltage Induction Heating Board 1 x Brass
redcolourful 1000W ZVS Low Voltage Induction Heating Board Module Flyback Driver Heater DIY for Home for Home
- Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work, you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload.
- To increase the heat sink using a customized substrate as thick as 8.5mm.
- This circuit can not only do the induction heating, the copper tube into the high-frequency transformer, is a powerful inverter.
- Using the M4 pillars, fever smaller, more efficient.
Description:
Item type: tool
This section of induction heating using low-voltage DC power supply 12-48V.
Maximum current 20A, maximum power 1000W.
Tested 53V power supply when working properly.
Because of its moderate power, can be used for small parts DIY players do hardening, annealing and other heat treatment.
Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient.
Inside diameter of the coil: approx. 40mm.
Height of the coil: approx. 50mm.
24V input with no load current of 3A.
48V input with no load current of 6A.
The higher the voltage, the greater the heating current when the same thing, the effect is better.
But at the same time heat is also large, so to eradicate the actual situation to select the input voltage, the general use of the words 24V or 36V power supply is enough.
It suits 12-36V power supply (not included).
The coil accept 40mm crucible.
Package includes:
1 x ZVS low voltage induction heating board
1 x brass coil
Notes:
Note:
1: The kit contains a full set of driving circuit elements and brass
2: Buyers need to bring their own power and cooling unit.
3: The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
5: So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.
6: The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit.
Bewinner Induction Heating Borad for DIY Players, 12V-48V 2500W Heating Plate High Frequency Induction Heater Module Flyback Driver, Low Voltage Induction Heating Board Module
- The heating plate is made of grade PCB, it has stable performance. Using 6 IRFP260s and 12 parallel resonant capacitors, high power, high efficiency.
- The power line is fully covered with copper cover, which can increase the current and heat generation.
- This product uses large radiator and large power supply, ensures better heat dissipation effect.
- The output terminal uses three M4 copper columns in parallel, which can be connected to other outputs such as high-voltage packet.
- It can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. It can heat evenly and quickly, which is very convenient.
Feature:
1. The heating plate is made of grade PCB, it has stable performance.
2. The power line is fully covered with copper cover, which can increase the current and heat generation.
3. This product uses large radiator and large power supply, ensures better heat dissipation effect.
4. The output terminal uses three M4 copper columns in parallel, which can be connected to other outputs such as high-voltage packet.
5. Using 6 IRFP260s and 12 parallel resonant capacitors, high power, high efficiency.
6. It can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. It can heat evenly and quickly, which is very convenient.
Specification:
Item Type: Induction Heater
Pump Input Voltage: DC 12V
Input Voltage: 12V-48V, recommended above 36V
Power Requirement: ＜12V ≥10A, ＞15V ≥20A
Maximum Power: 2500W
Maximum Current: 50A
Use: It can be used for DIY players to do quenching, annealing and other heat treatment for small parts. It can also be used with graphite crucible to smelt gold, silver, copper, aluminum and other metals. It can heat evenly and quickly, which is very convenient.
Package List:
1 x Induction Heating Borad
1 x Spiral Copper Tube
Conclusion
By our suggestions above, we hope that you can found low voltage induction heating board for you.Please don’t forget to share your experience by comment in this post. Thank you!
